Product NO. WQT

WQT(D) Portable effluent pump

Refer to pump specifications below to choose the correct WQT(D) model for your application.

Contact Us

    Application

    Due to its small size and light weight, this series of electric pumps are especially suitable for underground pumping in rural areas, farmland drainage, garden irrigation household domestic water, and can also be used to exclude industrial water accumulation, building construction water supply and drainage, breeding and other places



    Operating conditions

    • The medium temperature does not exceed 40℃
    • The medium pH value is between 4-10
    • The medium depth is not more than 1.2*103kg/m³

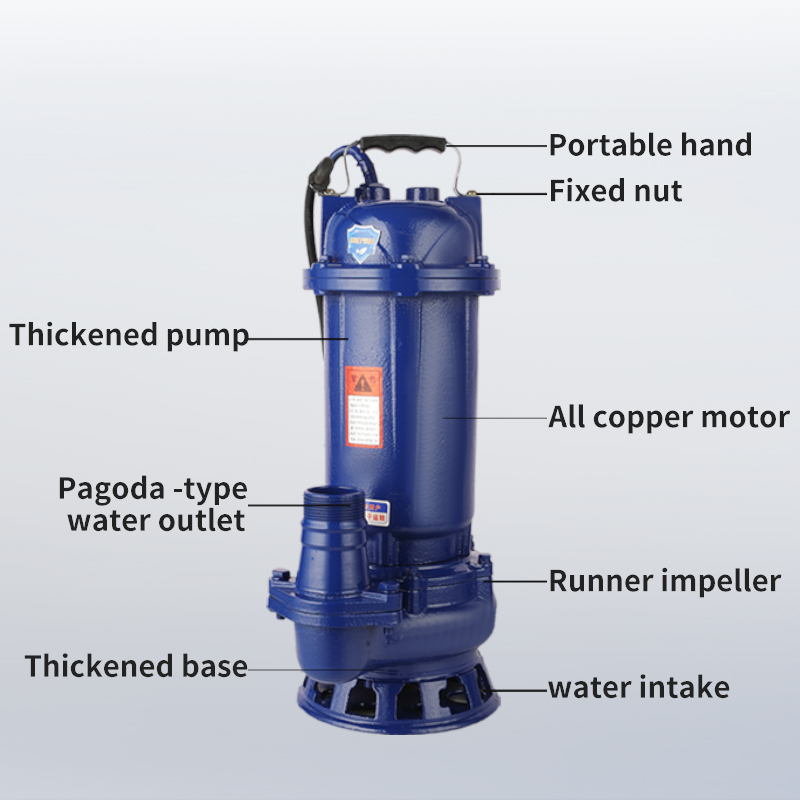

    Product Structure



    Model



    ModelFlow

    m³/h

    Head

    m

    Outlet Dia

    mm

    Power

    kw

    Voltage

    v

    40WQT10-8-0.55/A108400.55380
    40WQT(D)10-8-0.55/A108400.55220
    50WQT10-8-0.55/A108500.55380
    50WQT(D)10-8-055/A108500.55220
    65WQT10-8-055/A108650.55380
    65WQT(D)10-8-0.55/A108650.55220
    40WQT5-17-0.75/A517400.75380
    40WQT(D)5-17-0.75/A517400.75220
    50WQT10-11-0.75/A1011500.75380
    50WQT(D)10-11-0.75/A1011500.75220
    65WQT10-11-0.75/A1011650.75380
    65WQT(D)10-11-0.75/A1011650.75220
    40WQT8-16-1.1/A816401.1380
    40WQT(D)8-16-1.1/A816401.1220
    50WQT8-16-1.1/A816501.1380
    50WQT(D)8-16-1.1/A816501.1220
    50WQT15-11-1.1/A1511501.1380
    50WQT(D)15-11-1.1/A1511501.1220
    65WQT17-10-1.1/A1710651.1380
    65WQT(D)17-10-1.1/A1710651.1220
    40WQT8-20-1.5/A820401.5380
    40WQT(D)8-20-1.5/A820401.5220
    50WQT15-15-1.5/A1515501.5380
    50WQT(D)15-1.5/A1515501.5220
    65WQT15-15-1.5/A1515651.5380
    65WQT(D)15-1.5/A1515651.5220

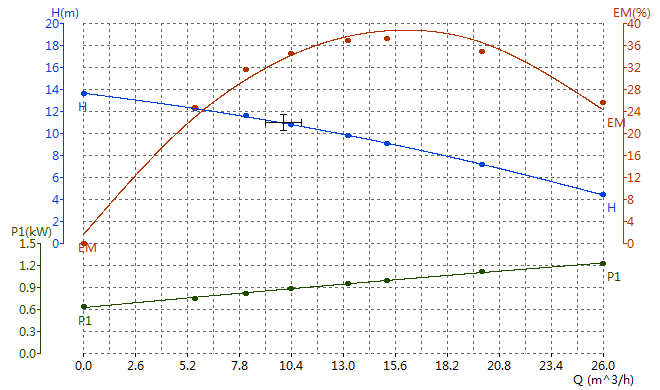

    50WQD10-11-0.75KW

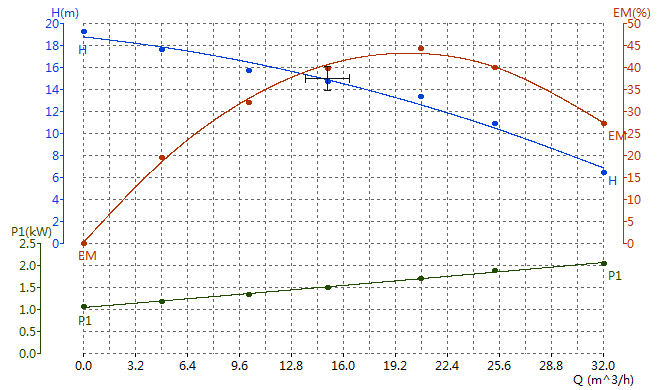

    50WQD15-15-1.5KW
