The Agitator Pump KBD Series is a cast iron made, heavy-duty slurry pump employing the KBZ Series as the base.
An agitator is provided to assist smooth suction of the pumping fluid.
The side-flow, top-discharge design keeps the motor cooling even if the pump is operated continuously with its motor exposed in air, and it makes the pump easier to be placed in a confined space.
This pump is suitable for transferring or draining bentonite slurry used for slurry drilling, draining slurry mixed water in civil engineering works or foundation works.

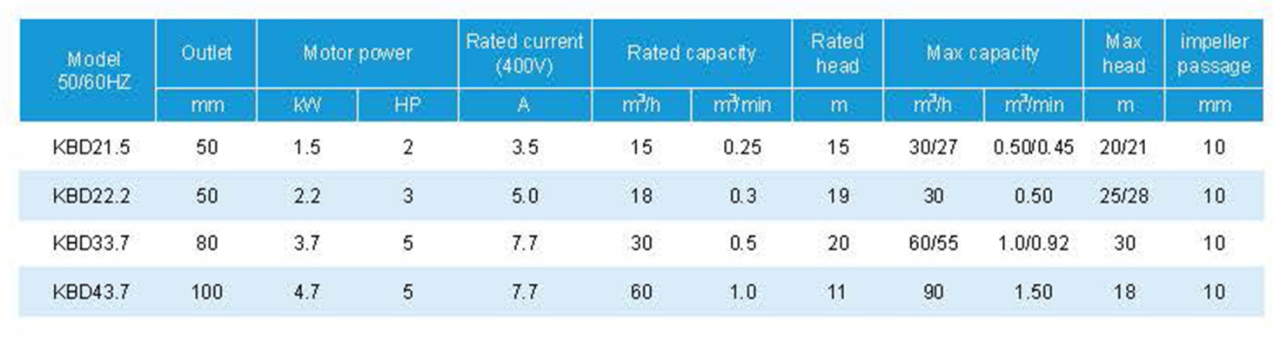

Specification
- Capacity: up to 90 m3/h
- Head: up to 30 meters
- Power:1.5kW(2HP)to 3.7 kW(5HP)
- Power supply: three phase 400V+ 10%,50Hz; 380V+10%,60HZ
- Insulation class: F
- Protection class: IP68
- Cable length: 8m
- Water temperature: up to 40℃
- water depth:25m
Application
- Civil engineering
- Mines,quarries,coal ore & slurry
- Sewage treatment plants
- General pumping purposes
Special Features on Request
- Other voltages
- The length of cable is optional
