Submersible slurry pump with a 4-pole motor for an increased lifetime and greater convenience.
High chrome alloy impeller combined with agitator for pumping heavy slurry.
Slim design with a top discharge enabling installation in smaller casing.
For bentonite mixed water in foundation works or muddy water in civil engineering works.

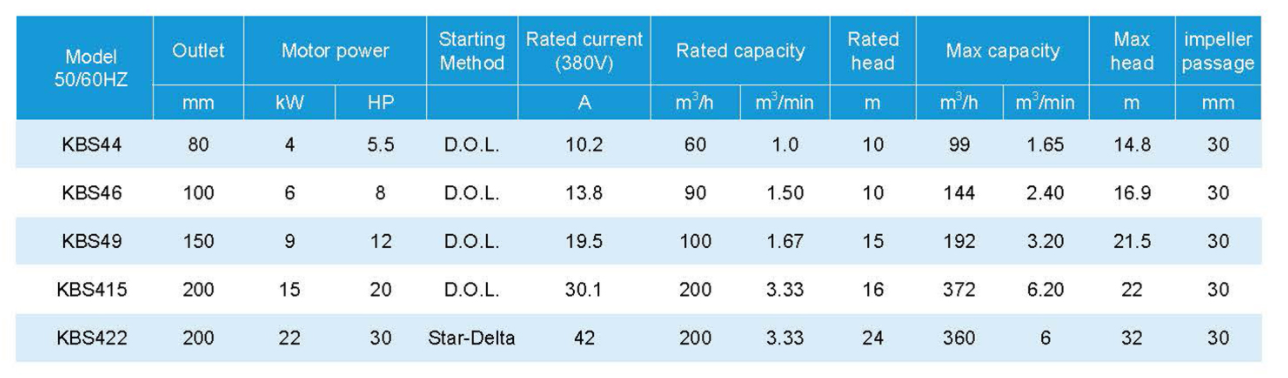

Specification
- Capacity: up to 372 m3/h
- Head: up to 32 meters
- Discharge:80mm(3″) to 200mm(8″)
- Power:4 kW(5.5HP)to 22 kW(30HP)
- Power supply: three phase 380V+10%,50HZ; 380V+10%,60HZ
- Insulation class:F
- Protection class: IP68
- Cable length: 8m
- Water temperature: up to 40℃
- Max water depth:15m
Application
- Civil engineering
- Mines,quarries,coal ore & slurry
- Sewage treatment plants
- General pumping purposes
- Pumping fluid: sludge,liquids-containing, mud and bentonite
Special Features on Request
- Other voltages
- The length of cable is optional
