SP Stainless Steel Borehole Pump

1. The motor and pump are integrated into the water andoperate safely and reliably.
2. There are no specialrequirements for well pipes and water pipes (ie: steel pipe wells can be used; under pressure permit,steel pipes, hoses, plastic pipes, etc. can be used as water pipes).
3. It is easy to install, use and maintain.It occupies a smallarea and does not require the construction of a pump room
4. Simple structure and save raw materials. However, whetherthe submersible electric pumps are used in appropriate conditions is directly related to their service life.

Necessary information need to confirm before quoting:

1. 1. Water source from Pond or deep well?
   2. If from deep well:
   • What’s the well diameter?
   • Does it a new drilling well or used well?
   • Has the newly excavated well had been cleaned?
   3. Does the voltage stable or not? Our standard voltage is 380V/50Hz3phase, what’sthe voltage range in your application area?

Usage Precautions:

1. SP series equip with two types of motor: water-filled type and oil-filled lf customer choose water-filled type motor, must add water before going down the well! if not, we are not responsible for after-sales.lf choose oil-filled motor , do not add water or oil inside.
2. No warranty if install in the water with too many sediment.
3. Please confirm with us in advance about the lengthen cable size.
4. Non-return valve must be installed

Customization:

1. If horizontal installation, the pump need to customize and add extra cost
2. if water temperature exceeds 30 degrees Celsius,the pump need to customize and add extra cost
3. If the voltage is lower than 360V (like between 320-360V), the pump need to customize and add extra cost

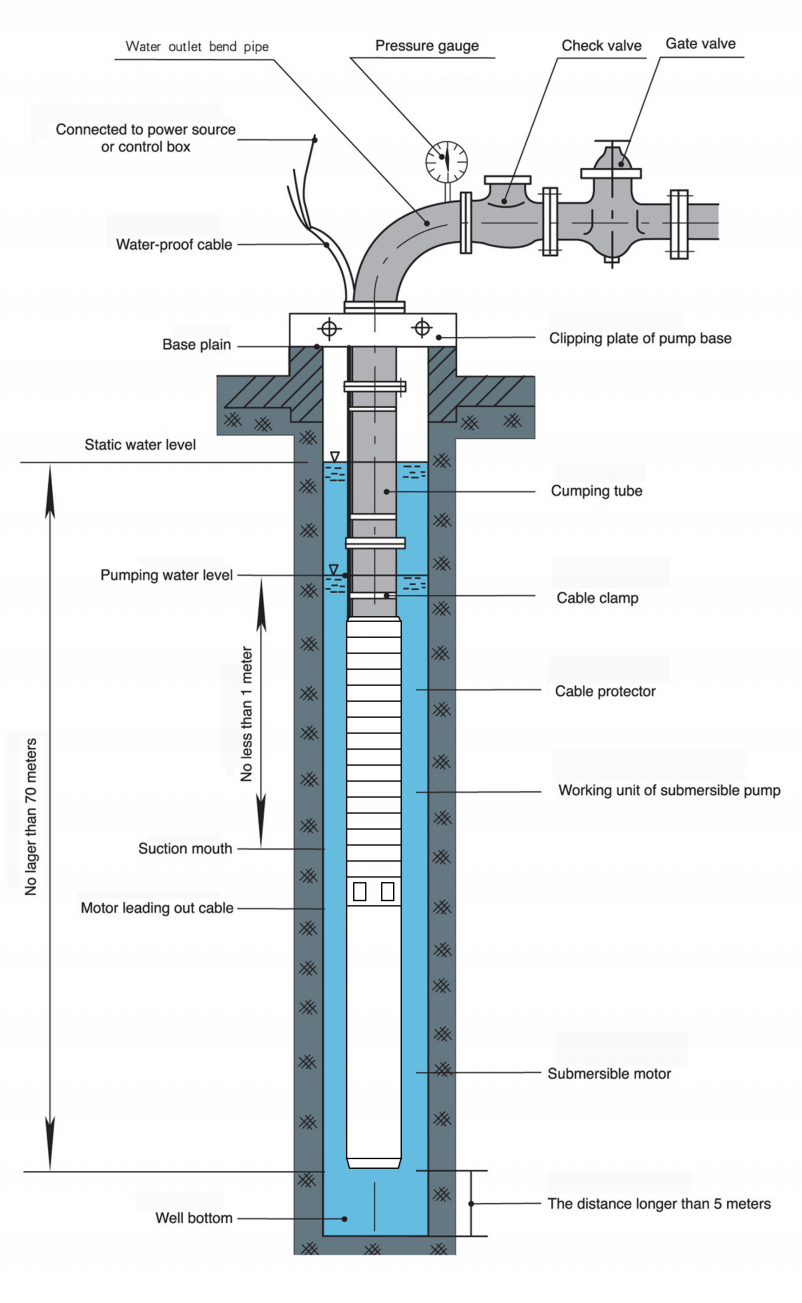

Installation Diagram:
