Material of Parts
Outlet:Stainless steel
Pump body;Stainless Steel
Impeller:Plastic
Motor Body : Die-cast Aluminum
Bearing: C&U OR NSK
Screw: Stainless Steel
Motor: Brushless DC motor
Controller shell: Die cast Aluminum (IP67)
Product feature
- Compact structure, high-lift, noiseless, pollution-free;complete electrical protecting controller device, against under-voltage, over-voltage, over-flow ,overload, waterless etc; automatic recovery; controlling water height as demand.
- Easy installation, maintenance- free, safe and reliable.
Working Condition
- Non-corrosive water;
- Max medium temperature up to +40℃;

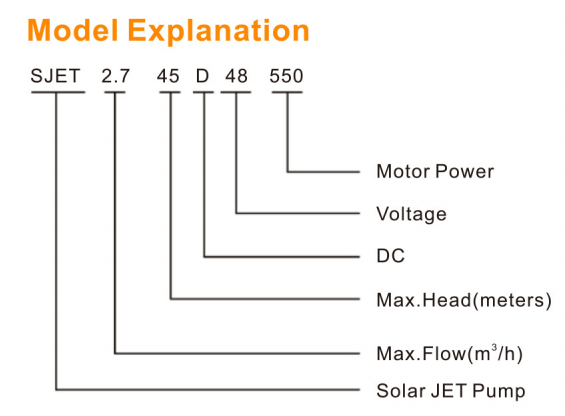

Model Explanation
