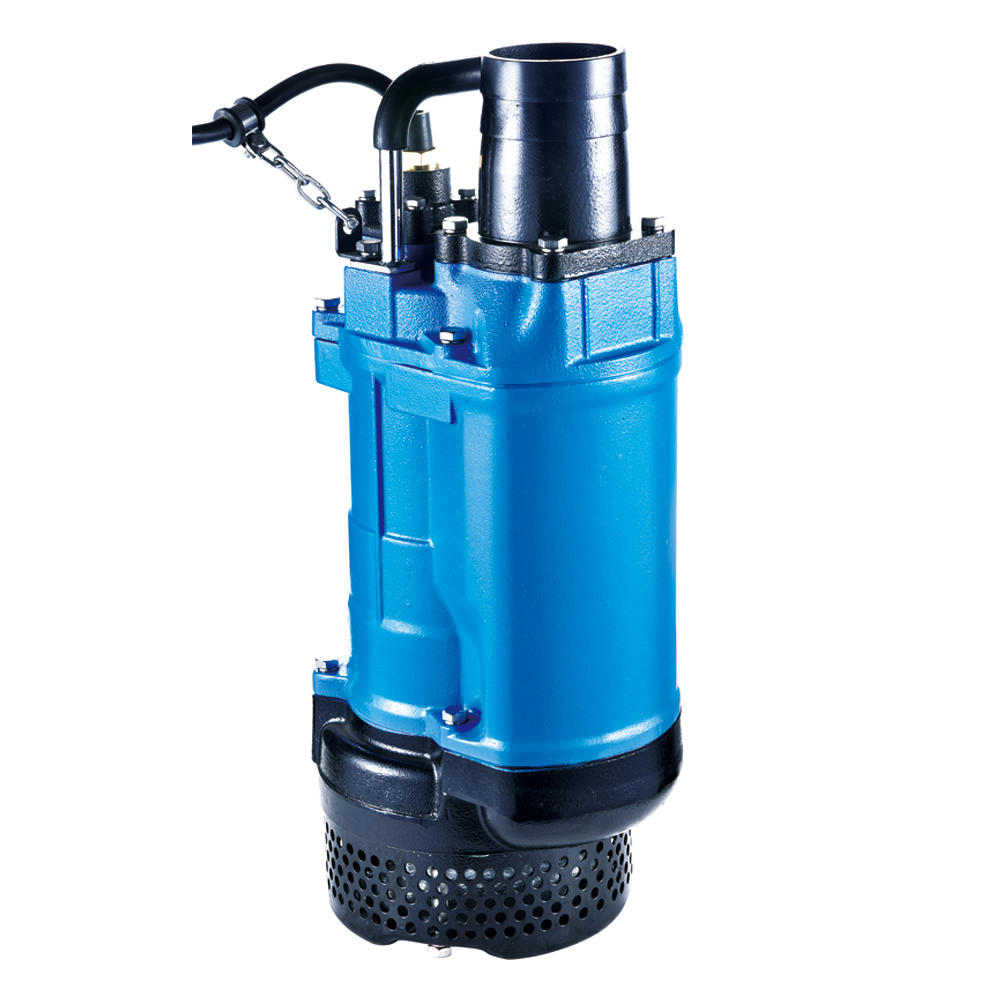

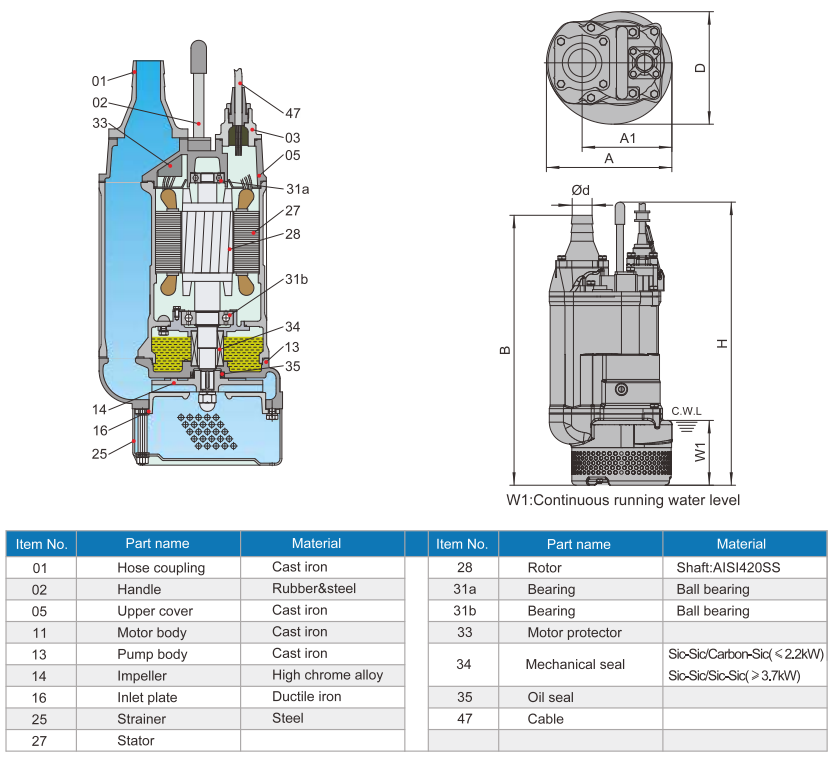

The body of motor and pump is made of rigid cast iron for long-lasting durability.Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure. Semi-open impeller made of high chrome alloy match with wear plate(ductile iron) achieves superior durability.
Effective motor cooling due to discharge channel cast as part of the motor housing.
Discharge 50mm(2″)to 150mm(6″),motor 1.5kW(2HP)to 15kW (20HP).
Hermetically sealed motor equipped build-in thermal protection for the power below 15kW.

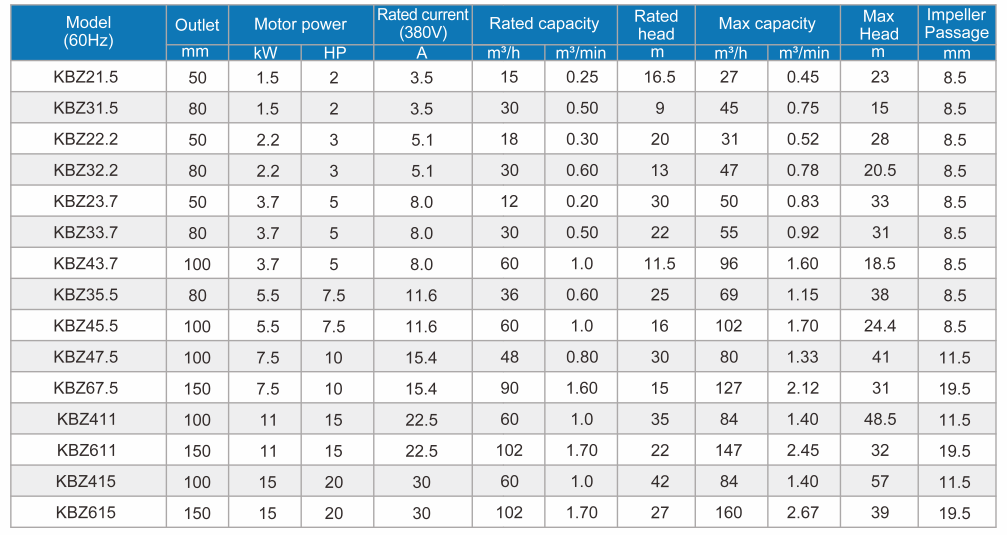

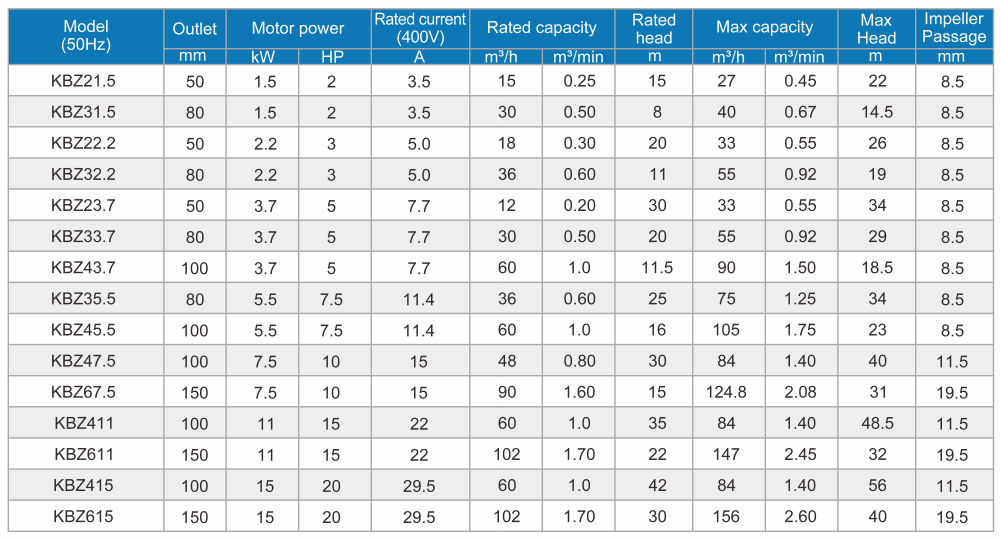

Specification

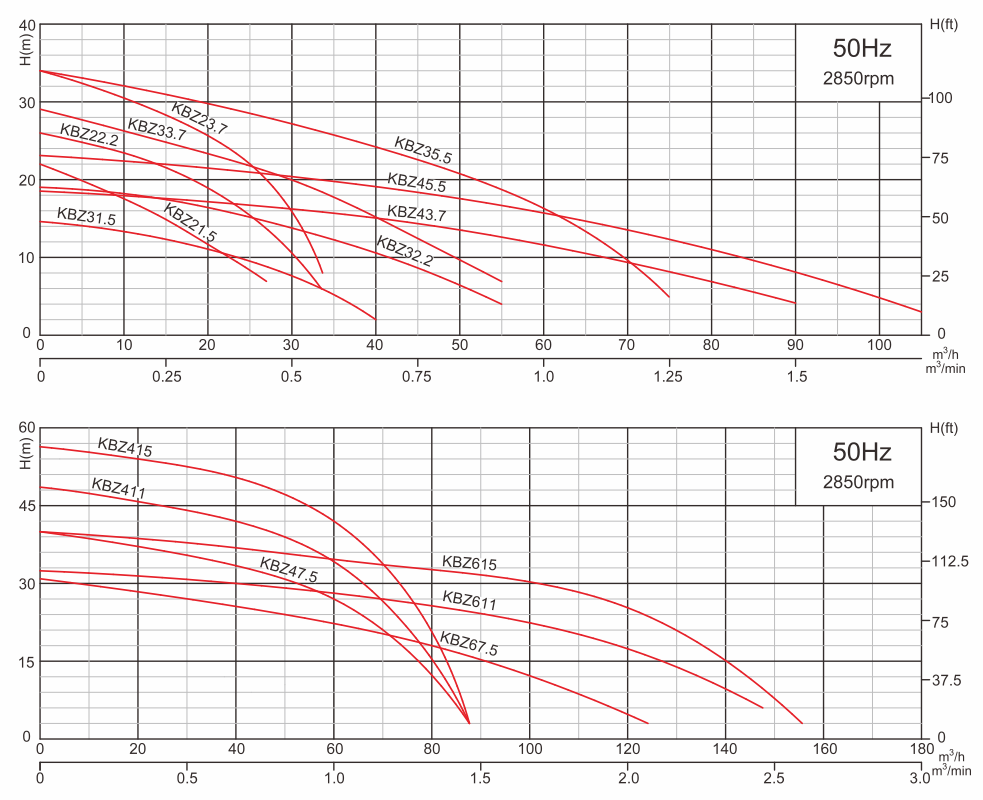

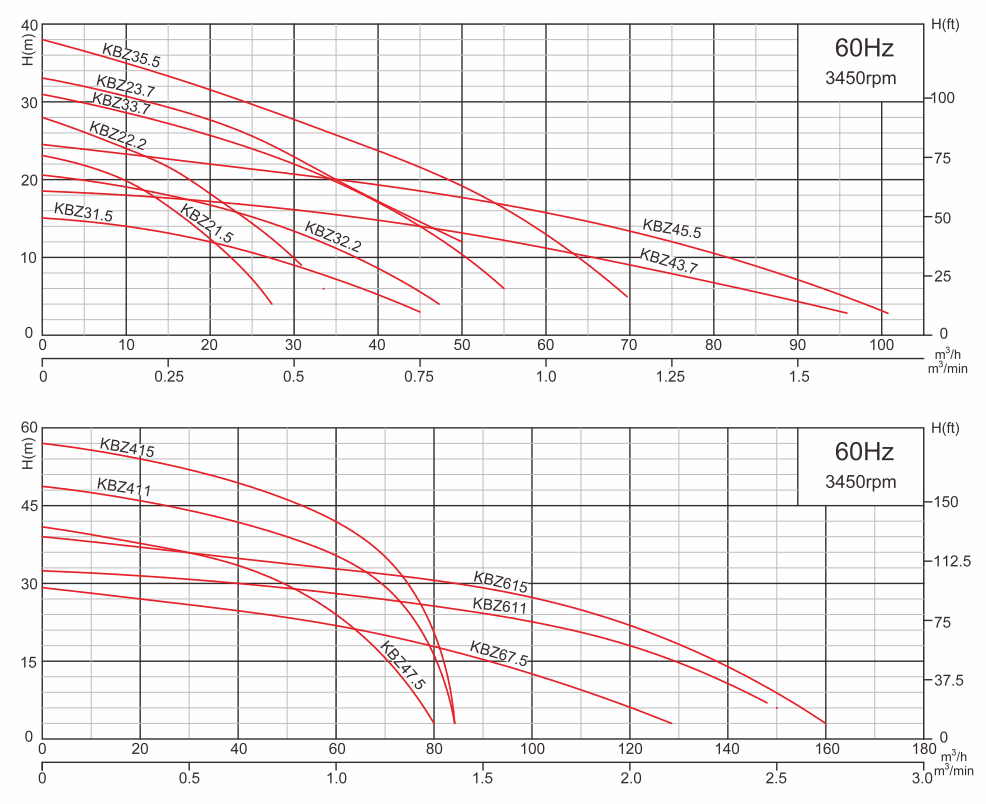

- Capacity:up to 160m/h
- Head:up to 57 meters
- Power:1.5kW(2HP)to 15kW(20HP)
- Powersupply: three phase 400V+10%,50HZ; 380V+10%，60Hz
- Insulation class:F
- Protection class:lP68
- Cable length:8m
- Water temperature:up to 40℃
- water depth:25m
Application
- Civil engineering
- Mines,quarries,coal ore & slurry
- Sewage treatment plants
- General pumping purposes
Special Features on Request
- Other voltages
- The length of cable is optional
